Aluminum threaded pipe fittings connect pipe and components without a welded joint at the fitting itself. They are used where a piping assembly calls for a removable threaded connection, a compact transition, a hose connection, an instrument connection, or a short run between compatible components. The fitting name is only the starting point. A usable request also has to identify the pipe size, thread form, alloy, wall, mating parts, and the job conditions that control the connection.
That is important because threaded fittings that look alike may not join the same way. A tee, elbow, coupling, bushing, plug, union, nipple, or hose-barb connector each changes the assembly differently. A thread that appears to match by eye can still be the wrong standard, gender, taper, or size. The right approach is to describe the connection job first, then select the fitting that carries it out.
What makes a fitting a threaded pipe fitting?
A threaded pipe fitting has a prepared threaded opening, a threaded end, or both. It joins with a compatible mating part by turning the threads together. Depending on the fitting, the connection may be female threaded, male threaded, or a combination of threaded and other end preparations. The thread arrangement must be known at every opening, especially where the fitting reduces size or connects to equipment.
Threaded fittings are different from butt-weld fittings. A butt-weld fitting is prepared to be welded to pipe, while a threaded fitting relies on the connection geometry and sealing method specified for the threaded joint. Either approach can be appropriate in an industrial system, but the fitting must match the connection method on the adjacent component. The site’s pressure fittings range is a useful starting point for reviewing threaded connection families, while the aluminum butt-weld fitting range covers the separate welded path.
Before selecting a part, write down what the connection needs to do. Does the line need to turn, split, reduce, close an opening, join two pipe ends, attach a hose, or allow later disassembly? That question narrows the fitting type much faster than searching by material and size alone.
Choose the fitting type around the connection job
Elbows change direction. Tees create a branch. Couplings join compatible pipe ends. Bushings reduce from one threaded size to another. Plugs close a threaded opening. Unions create a removable joint, and nipples add a short threaded pipe section between compatible female-threaded components. Hose-barb connections are used where the job needs a hose attachment rather than a rigid pipe-to-pipe joint.
A fitting should not be asked to solve a different problem than the one it was designed for. A reducing bushing can create a threaded size transition, but it does not create the same geometry as a reducer in a butt-weld pipe run. A nipple adds length, but it does not change thread form or turn a male connection into a female one. A coupling joins like sizes, but it is not a substitute for a union where the assembly needs to be disconnected without rotating a fixed pipe run.
The product pages for nipples, swages, and EUE fittings, plugs and bushings, and industrial unions help identify the related connection families. For a complete fitting package, list the components in their installed order. Seeing the part before and after the fitting is often the fastest way to expose an incorrect gender, reduction, or end condition.
Confirm the thread standard, gender, and taper
Do not use the word “threaded” as though it defines the connection. The request needs the actual thread standard, size, and gender. In United States industrial piping work, NPT is a common designation for general-purpose tapered pipe threads. ASME B1.20.1 is the reference for those inch-series pipe-thread dimensions and gaging requirements.
Tapered threads and straight or parallel threads are not interchangeable just because the nominal size looks similar. Their geometry, engagement, sealing method, and mating requirements can differ. The fitting, pipe, valve, instrument, hose end, sealant, service conditions, and responsible project specification all need to agree. When the existing thread is unknown, avoid guessing from a rough outside measurement or a photo alone.
State male or female thread at each fitting opening. A reducing tee, for example, may have a different nominal size at its branch, and an adapter may use a different thread arrangement at each end. For replacement work, include close photos of the threads and all visible markings, then identify the components that must mate with the fitting.
Use nominal pipe size, then verify the actual mating dimensions
Threaded pipe fittings are commonly described by nominal pipe size, not by a simple outside-diameter measurement. Nominal size is a sizing designation that has to match the system used by the adjacent pipe and fittings. A request for a 1 in. fitting does not provide enough information by itself when the mating part could use another connection convention or when the job drawing calls out actual measured dimensions.
Start with the nominal pipe size at every opening. Then confirm the thread standard, gender, and any reduction. If the fitting is part of a replacement, compare those details with both mating components, not only the removed part. The site’s dimension charts are useful for related pipe-fitting geometry, but they do not replace the specific thread callout and installation dimensions required for a threaded joint.
Wall and schedule still matter where the threaded fitting connects to pipe. They can affect bore, material availability, thread engagement, and the relationship to the rest of the assembly. When a fitting needs to align with a fixed valve, vessel nozzle, gauge, hose, or support, provide the installed dimension that must be held instead of assuming the fitting’s nominal size will settle the layout.
Write the size at every opening in the order shown on the drawing. For a reducing fitting, that removes a common source of confusion. A reducing bushing may be called out by its larger outside thread and smaller inside thread, while a reducing tee needs the run and branch sizes identified separately. A clear written callout lets each person reviewing the request see the same connection path.
Check the physical access needed to make the joint as well. A threaded connection is assembled by turning one part into another, so the surrounding pipe, valve, or spool must allow that movement. Where neither side can rotate, a union or a different connection arrangement may be needed. Flag that constraint early instead of treating the fitting as an isolated catalog item.
Keep alloy, product form, and service requirements together
The material requirement belongs in the same line as the connection details. Aluminum Pipe Fittings provides information on 5086 H32 and 6061 T6 aluminum fitting alloys, but the right alloy and temper still need to come from the project specification, service environment, joining requirements, and any documentation requirements. Naming only “aluminum” leaves too much open for a component that has to match a defined system.
Product form matters as well. The ASTM B429/B429M standard covers extruded aluminum-alloy pipe and tube, while a fitting may be governed by different material and manufacturing requirements. For factory-made wrought aluminum and aluminum-alloy welding fittings, the relevant standard is ASTM B361. Neither standard title alone defines a complete threaded-fitting request, so the governing project documents should identify what applies to the actual item.
Include pressure, temperature, media, corrosion, inspection, traceability, or certification requirements when they are part of the job. A thread and alloy match are not a full engineering review of service suitability. The responsible project team should evaluate the complete piping requirement before installation.
Check fit-up before ordering a threaded replacement
Replacement work is where incomplete fitting descriptions cause the most trouble. The old fitting may have been modified, installed in a nonstandard orientation, or paired with components that are no longer obvious from the part alone. Start with the two mating parts and document the fitting’s function in the assembly. Is it turning a line, changing size, creating a hose point, extending a connection, or closing a port?
Photograph the fitting from more than one angle and capture any markings. Measure the dimensions that control the installation, such as the distance to a fixed flange face, wall, valve handle, instrument, support, or hose. Note whether the connected components can rotate during assembly. A threaded fitting may be dimensionally correct but still impossible to install if the surrounding spool and equipment cannot be turned into position.

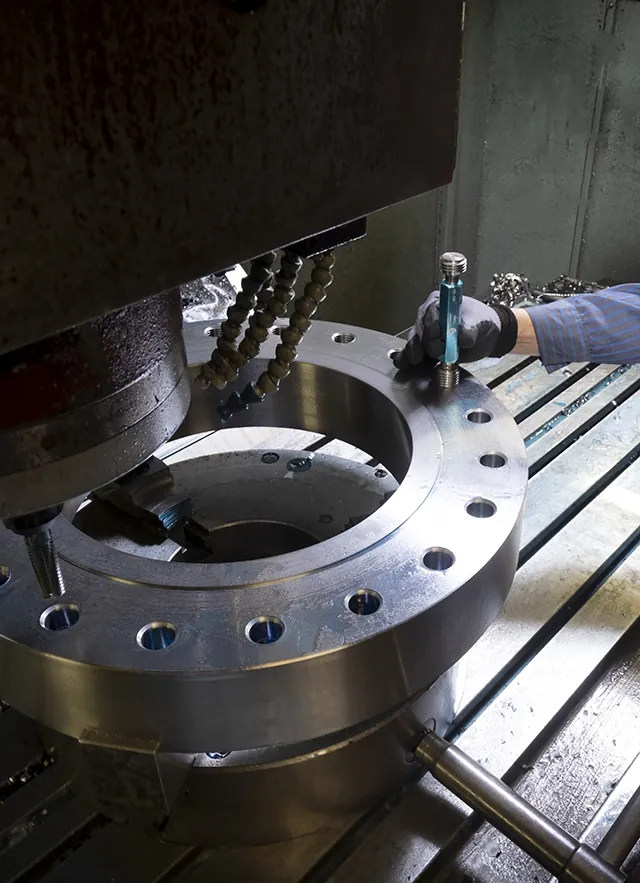

Where the fitting is part of a larger package, provide the drawing and the list of neighboring parts. Aluminum Pipe Fittings supports machined connectors and custom work, so a clear description of the controlled dimensions, end conditions, alloy, quantity, and timing gives the team a basis to review whether a standard item or a custom path is practical.
Build a complete threaded-fitting request
A clear request lets a supplier evaluate one defined connection rather than fill in missing details. Begin with the fitting type and nominal size at each opening. Add the thread standard and gender for every connection, then state the alloy, wall or schedule where applicable, quantity, delivery location, and needed-by date. Include the drawing, inspection, traceability, or documentation requirements when the project calls for them.
For a replacement, add photos, markings, mating-component information, and the installed dimensions that cannot move. For a custom part, identify the thread and end preparation at each side, any bore or machining requirement, the dimensions to hold, and the full assembly relationship. Those details prevent a simple-looking fitting from becoming an avoidable field-fit problem.
Common threaded-fitting mistakes to avoid
The first mistake is treating the nominal size as the whole specification. It is not. Thread form, taper, gender, fitting type, alloy, and mating component details can all change whether the part works. The second is assuming all threaded parts use the same system because they share a similar diameter. Confirm the specified thread before ordering or installation.
Another mistake is choosing a fitting only by the connection that is easiest to see. A bushing, nipple, or adapter may look like the answer at one end while creating a mismatch at the other. Review the whole connection path. Finally, do not leave installation orientation and fixed dimensions until after a replacement arrives. When clearance or component position matters, put that information on the drawing from the beginning.
How Aluminum Pipe Fittings can help
Aluminum Pipe Fittings is a division of South Coast Industrial Metals and supports industrial fitting, connector, flange, pipe, and custom fabrication requirements. The company’s practical strength is helping buyers turn a partial fitting description into a reviewable requirement, especially when the request involves several mating components or a custom dimension.
Start with the relevant pressure fitting options or threaded nipple and connector range, then use the quote request page to send the fitting type, nominal size, threads, alloy, wall, mating parts, drawing, quantity, and delivery need together.
Frequently asked questions
What are aluminum threaded pipe fittings?
Aluminum threaded pipe fittings are components with internal or external pipe threads that join compatible threaded pipe, valves, instruments, hoses, or other fittings. The correct selection depends on the fitting type, nominal pipe size, thread standard, alloy, wall, service conditions, and the mating components.
Are NPT threads the same as straight threads?
No. NPT is a tapered pipe-thread system. Straight and parallel threads have different geometry and sealing arrangements. A fitting should only be connected to the thread form called for by the project and confirmed against the mating part.
How do I specify an aluminum threaded fitting?
State the fitting type, nominal pipe size at every opening, thread standard and gender, alloy, pressure or service requirements, quantity, and any drawing or documentation requirement. Include photographs and measurements when matching an existing part.
Can threaded aluminum fittings be used with butt-weld pipe?
A threaded fitting and a butt-weld pipe end use different connection methods. A system can include both connection styles when the design calls for the right transition, but the mating components and end details must be clearly identified. Do not assume a threaded fitting will directly replace a butt-weld fitting.
What information helps with a replacement fitting?
Send clear photos of the part and its markings, the nominal size, the thread type if known, the alloy requirement, the two mating components, and the installed dimensions. A drawing or sketch is especially useful when the fitting sits near fixed equipment or a fabricated spool.
